BC Racing Coilovers Suspension Shocks Springs for BMW E46 M3 98-05 RA

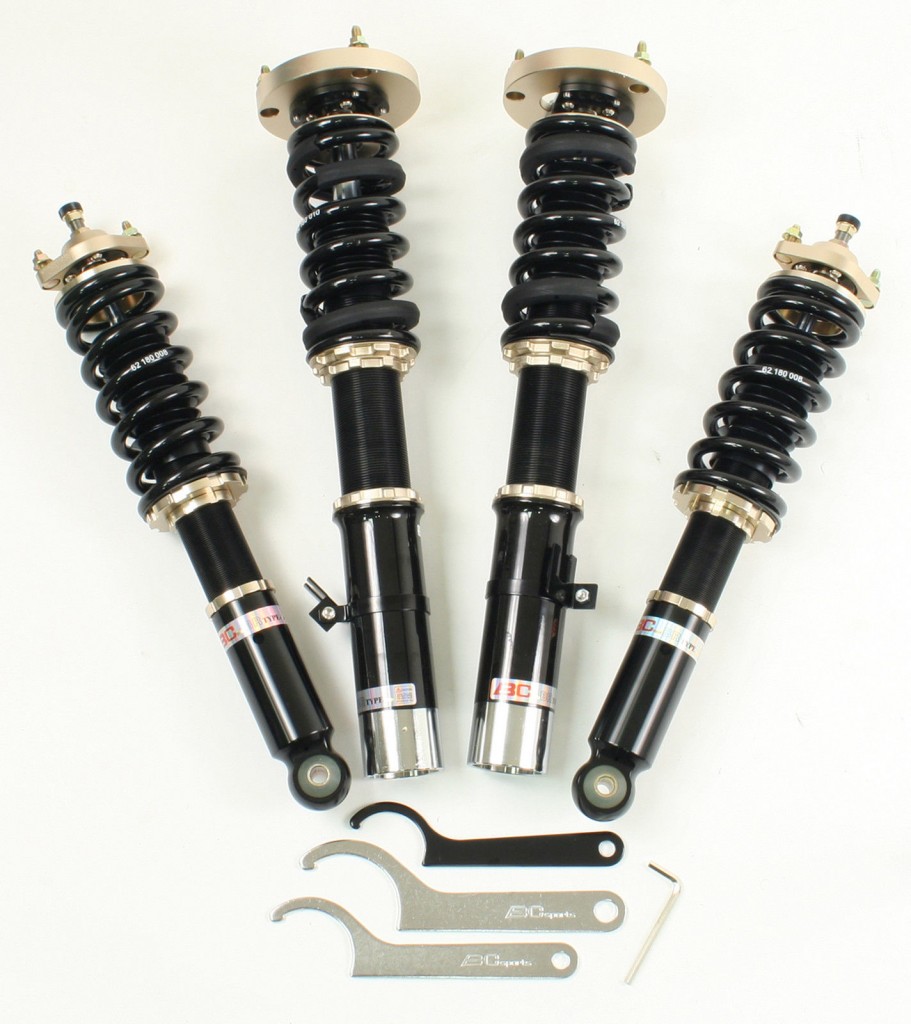

BC Racing Coilover Kit (BR-RA) for BMW E46 M3 98-05

The BR series coilovers use a large 46mm diameter piston in a 53mm diameter damper body to maximize oil capacity. As the damper unit operates the oil contained within heats up. The viscosity of oil changes as its temperature varies which can lead to changes in the damping characteristic of the unit. BC Racing only use a very high quality oil with their coilovers but go that extra mile to maximize performance and build their BR range with a large 53mm diameter damper body. This increases the capacity of the unit which increases the volume of oil contained which in turn reduces the peak temperature and so significantly improves damper performance.

Designed for Street and Track Days Use

Type: RA

Front Mount Type: Inc Pillowball Top Mount / Camber were available
Rear Mount Type: Rubber Top Mount or No Top Mount
Spring Rate Available:

8/8 kg/mm

7/8 kg/mm

12/12 kg/mm

12/16 kg/mm

8/8kg/mm with offset topmount

8/12 kg/mm with offset topmount

10/10 kg/mm with offset topmount

14/20 kg/mm with offset topmount

12/8 kg/mm with offset toppmo

unt

8/10 kg/mm with Camber and Castor topmount

(£60.00 Extra)

8/8 kg/mm with Camber and Castor topmount

(£60.00 Extra)

14/20 kg/mm with camber and Caster topmount (£60.00 Extra)

10/10 kg/mm with Camber and Castor topmount

(£60.00 Extra)

8/12 kg/mm with Camber and Caster Topmount

(£60.00 Extra)

Please confirm upon checkout

Note: Front Topmount is camber adjustable, no rear top mount

Applications:

• BMW E46 M3  (98-05)
